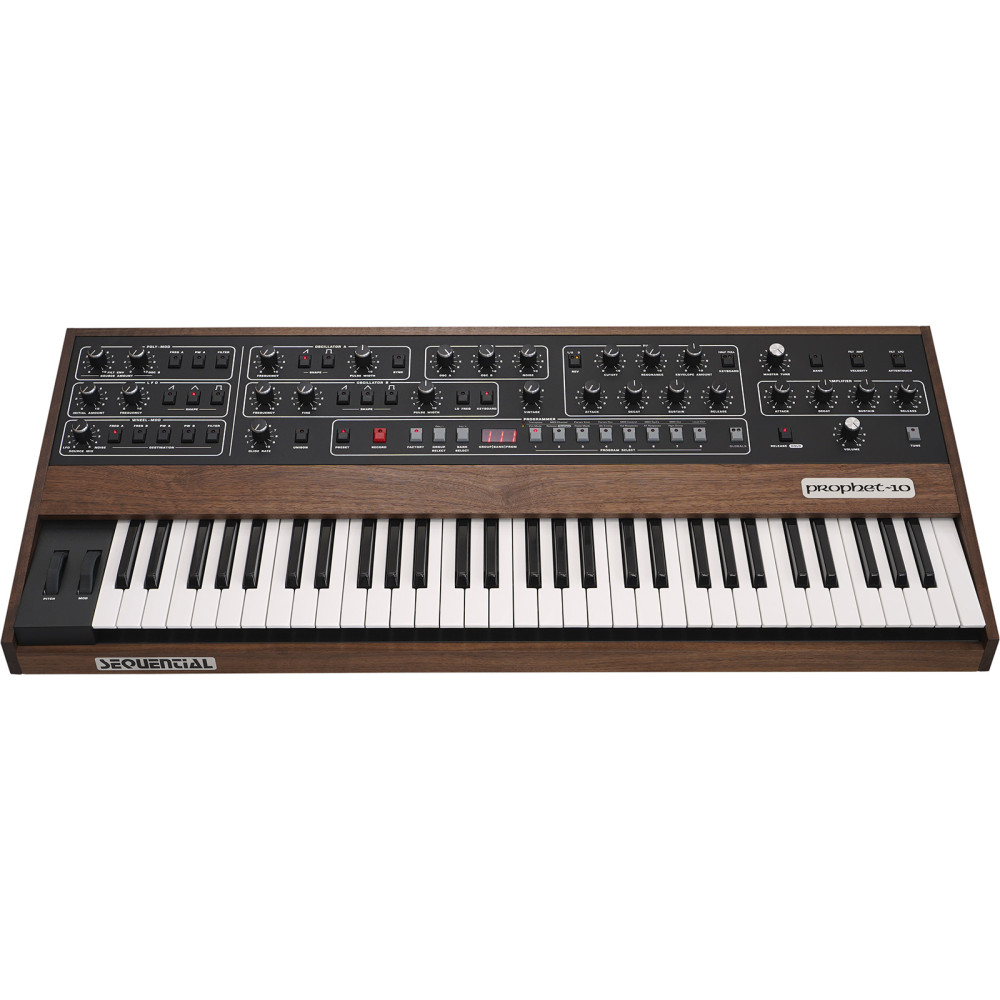

Le nouveau Prophet-10 est la version à dix voix de Dave Smith du synthétiseur poly analogique qui a changé le monde.

C'est «le meilleur de tous les prophètes» comme le dit Dave car il incarne les trois révisions du légendaire synthétiseur Prophet-5 - Rev1, Rev2 et Rev3 - grâce à l'utilisation de véritables

VCO analogiques et filtres Curtis (comme dans le Rev3) comme ainsi que de nouveaux filtres passe-bas 2140 conçus par Dave Rossum, comme les filtres 2040 qu'il a conçus dans les Rev1

et Rev2 d'origine. Un commutateur Rev vous permet de choisir entre les deux modèles de filtre.

Imaginez ceci:

-Réinvention authentique du Prophet-5 original en apparence et en son

-5 voix, avec vélocité et aftertouch, MIDI et un clavier Fatar premium

-VCO CEM vintage authentiques

-Filtres vintage authentiques conçus par Doug Curtis et Dave Rossum (commutables)

– Bois de cœur en noyer noir de première qualité, digne d’un collectionneur, en acier et huilé à la main

Spécifications :

OSCILLATORS

Two authentic CEM 3340 VCOs per voice
Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
Pulse width per oscillator
Hard sync: oscillator 1 syncs to oscillator 2
Low frequency mode (oscillator 2)
Keyboard tracking on/off (oscillator 2)

MIXER

Oscillator 1 amount
Oscillator 2 amount
White noise amount

LOW-PASS FILTER

Four-pole, resonant, low-pass filter per voice
Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
Rev3 filter is a Doug Curtis-designed CEM 3320
Filter can be driven into self-oscillation with the Resonance control
Keyboard tracking: off, half, full

FILTER ENVELOPE

Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount

AMPLIFIER ENVELOPE

Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATOR

Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
Both Initial Amount and mod wheel control
Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff

POLY MOD

Sources: filter envelope and oscillator B
Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff

VINTAGE KNOB

Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.

AFTERTOUCH

Channel (mono) aftertouch
Destinations: filter cutoff frequency, LFO amount

PERFORMANCE CONTROLS

Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
Mod wheel
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Polyphonic glide (portamento)
Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes
Preset switch: when off, the front panel is live; what you see is what you hear

PATCH MEMORY

200 user and 200 factory programs in 5 banks of 40 programs each
Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

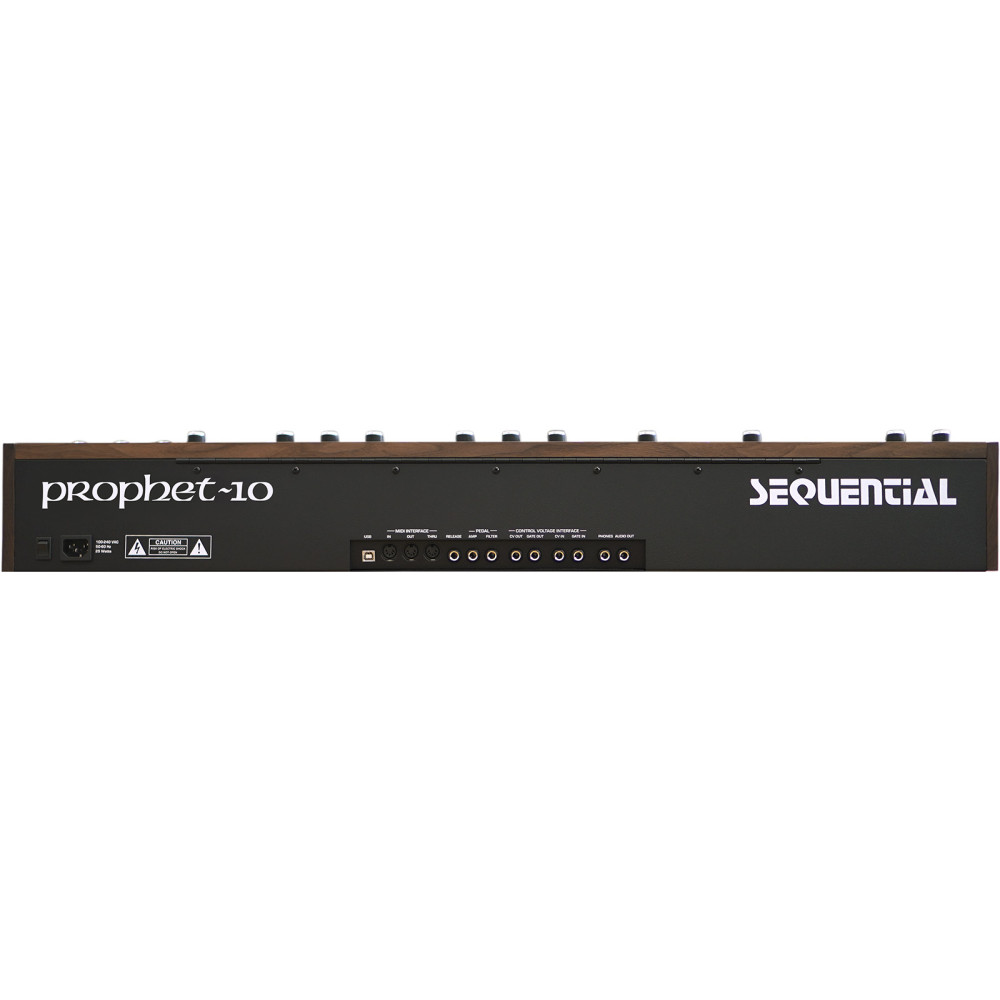

IN/OUT

Mono output (1 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
MIDI in, out, and thru ports
USB for bidirectional MIDI communication
Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input

POWER

IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.

PHYSICAL SPECS

37.5” L x 16.4 W x 4.9″ H (95.25 cm x 41.6 cm x 12.4 cm)
31 lbs (14.06 kg)
Roadworthy all-steel construction with premium black walnut heartwood body and trim
