C’est «le meilleur de tous les Prophet-5» car il incarne les trois révisions du synthé légendaire – Rev1, Rev2 et Rev3 – grâce à l’utilisation de véritables VCO et filtres analogiques

Curtis (comme dans le Rev3) ainsi que du nouveau filtre 2140 passe-bas conçus par Dave Rossum, l’équivalent moderne des filtres 2040 qu’il a conçus dans les Rev1 et Rev2 d’origine. Un commutateur vous permet de choisir entre les deux modèles de filtre.

Le résultat est un renouvellement d’un classique analogique avec le son authentique et musclé de l’original et le contrôle technique d’un instrument moderne à la pointe de la technologie.

Pour donner un effet encore plus authentique au nouveau Prophet-5, nous avons créé le bouton Vintage.

Utilisez-le pour composer autant de hasard à l’ancienne. Il détendra les oscillateurs et les enveloppes comme ils l’étaient au bon vieux temps.

Il vous permet de donner progressivement un caractère plus vintage au fur et à mesure que vous passez d’un état 4 stable (comme dans Prophet-5 Rev4) à 1 (comme dans Prophet-5 Rev. Le plus rare et le plus capricieux de tous les Prophet-5 !

Nous avons même inclus les 40 sons d’usine originaux du Prophet-5.

Imaginez ceci:

-Réinvention authentique du Prophet-5 original en apparence et en son

-5 voix, avec vélocité et aftertouch, MIDI et un clavier Fatar premium

-VCO CEM vintage authentiques

-Filtres vintage authentiques conçus par Doug Curtis et Dave Rossum (commutables)

– Bois de cœur en noyer noir de première qualité, digne d’un collectionneur, en acier et huilé à la main

Spécifications :

OSCILLATORS

Two authentic CEM 3340 VCOs per voice
Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
Pulse width per oscillator
Hard sync: oscillator 1 syncs to oscillator 2
Low frequency mode (oscillator 2)
Keyboard tracking on/off (oscillator 2)

MIXER

Oscillator 1 amount
Oscillator 2 amount
White noise amount

LOW-PASS FILTER

Four-pole, resonant, low-pass filter per voice
Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
Rev3 filter is a Doug Curtis-designed CEM 3320
Filter can be driven into self-oscillation with the Resonance control
Keyboard tracking: off, half, full

FILTER ENVELOPE

Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount

AMPLIFIER ENVELOPE

Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATOR

Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
Both Initial Amount and mod wheel control
Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff

POLY MOD

Sources: filter envelope and oscillator B
Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff

VINTAGE KNOB

Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.

AFTERTOUCH

Channel (mono) aftertouch
Destinations: filter cutoff frequency, LFO amount

PERFORMANCE CONTROLS

Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
Mod wheel
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Polyphonic glide (portamento)
Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes
Preset switch: when off, the front panel is live; what you see is what you hear

PATCH MEMORY

200 user and 200 factory programs in 5 banks of 40 programs each
Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

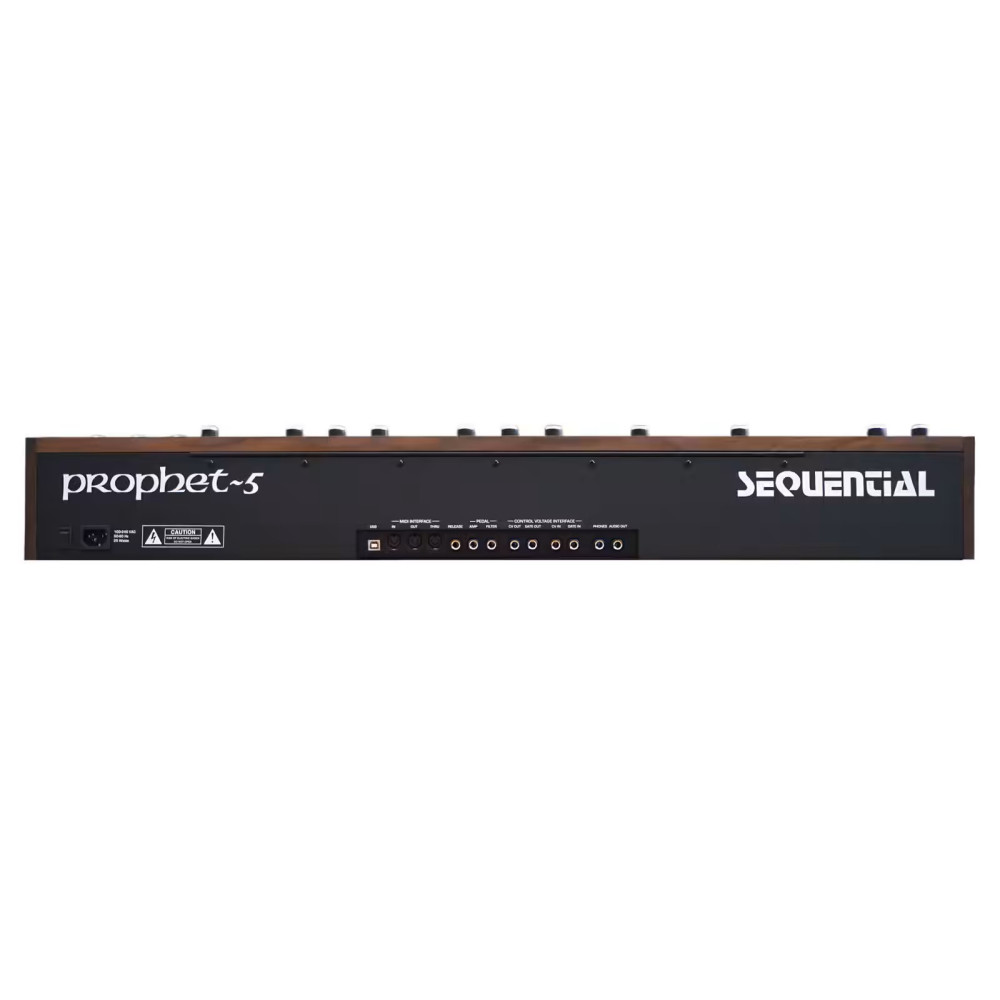

IN/OUT

Mono output (1 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
MIDI in, out, and thru ports
USB for bidirectional MIDI communication
Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input

POWER

IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.

PHYSICAL SPECS

37.5” L x 16.4 W x 4.9″ H (95.25 cm x 41.6 cm x 12.4 cm)
31 lbs (14.06 kg)
Roadworthy all-steel construction with premium black walnut heartwood body and trim
