3 OSCILLATORS
Two analog, vo ltage-controlled oscillators
One DSP-based digital oscillator
Analog oscillators produce three classic wave shapes: (triangle, saw, pulse) with variable shape modulation/pulse width on each
Digital oscillator produce 32 digital wavetables of 16 waves each with wave morphing, plus classic wave shapes (sine, triangle, saw, variable-width pulse) and super saw
Digital oscillator 3 can function as an LFO for complex wavetable-based modulation
White noise generator
Hard sync, per-oscillator Glide, Oscillator Slop
3-VOICE PARAPHONIC PLAYABILITY
3-voice paraphonic mode with individually-gated envelopes per oscillator
3 FILTERS
Three classic filter types
Filter 1 is a 4-pole, 24 dB per-octave, Prophet-6™ low-pass filter
Filter 2 is a classic, 4-pole, 24 dB per-octave, transistor ladder filter with optional resonance compensation
Filter 3 is a 2-pole, 12 db per-octave, OB-6™ state-variable filter. It can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode.
3 LFOS
Three syncable LFOs with phase offset and slew per LFO
Five waveshapes: triangle, saw, reverse saw, square, and S&H
4 ENVELOPES
Four ADSR envelopes with delay (Filter, VCA, and two Auxiliary envelopes)
Envelopes freely assignable to multiple modulation destinations
All envelopes can repeat/loop
DIGITAL EFFECTS
Dual digital effects
Stereo delay, BBD delay, chorus, flanger, phaser, ring mod, vintage rotating speaker, distortion, high-pass filter, super plate reverb
FEEDBACK AND DISTORTION
Tuned feedback with Grunge for extra-aggressive tonal destruction
Programmable analog distortion
32-SLOT MODULATION MATRIX
32 slot modulation matrix with over 46 mod sources and over 171 mod destinations
Modulation assignment buttons enable quick and easy modulation routing
Mod Matrix runs at audio rates
4 CONTROL VOLTAGE INS & OUTS AND GATE OUT
Four control voltage (CV) inputs and outputs for interfacing with modular synths and other CV-compatible devices
Parameters that can be sent to CV outputs include oscillators, LFOs, envelopes, sequencer tracks and any other source within the modulation matrix. Runs at audio rates.
Gate Out for triggering external CV-compatible devices. Any CV in can be used as a gate input.
16-TRACK SEQUENCER
Advanced sequencer with three modes: normal, gated, and trigger
16 tracks and 4 linkable 16-step phrases
Per-step ratcheting, duration, and velocity
Multiple playback modes: forward, reverse, forward/reverse, random
Supports real-time/step input, rests, and variable-length sequences
Syncs to MIDI clock and external audio and CV input
Sequences freely assignable to any modulation destination
ARPEGGIATOR
Sophisticated arpeggiator with up, down, up+down, random, assign modes
Syncs to MIDI clock and external audio and CV inputs
Re-latching arpeggiation
Runs concurrent with Sequencer for arpeggiated patterns with parameter automation
CONTROLS
Over 60 knobs and 70 buttons enable deep, comprehensive editing with minimal menu diving
Backlit pitch and mod wheels are easily visible in low-light situations and have a smooth, precise response.
Independently adjustable upper and lower pitch wheel range
Position-sensitive latchable touch slider for enhanced interactivity and control
Full-sized, three-octave, semi-weighted keyboard with velocity and aftertouch
MEMORY
512 user and 512 factory programs
Playlist mode for generating easily accessible set lists of your favorite programs

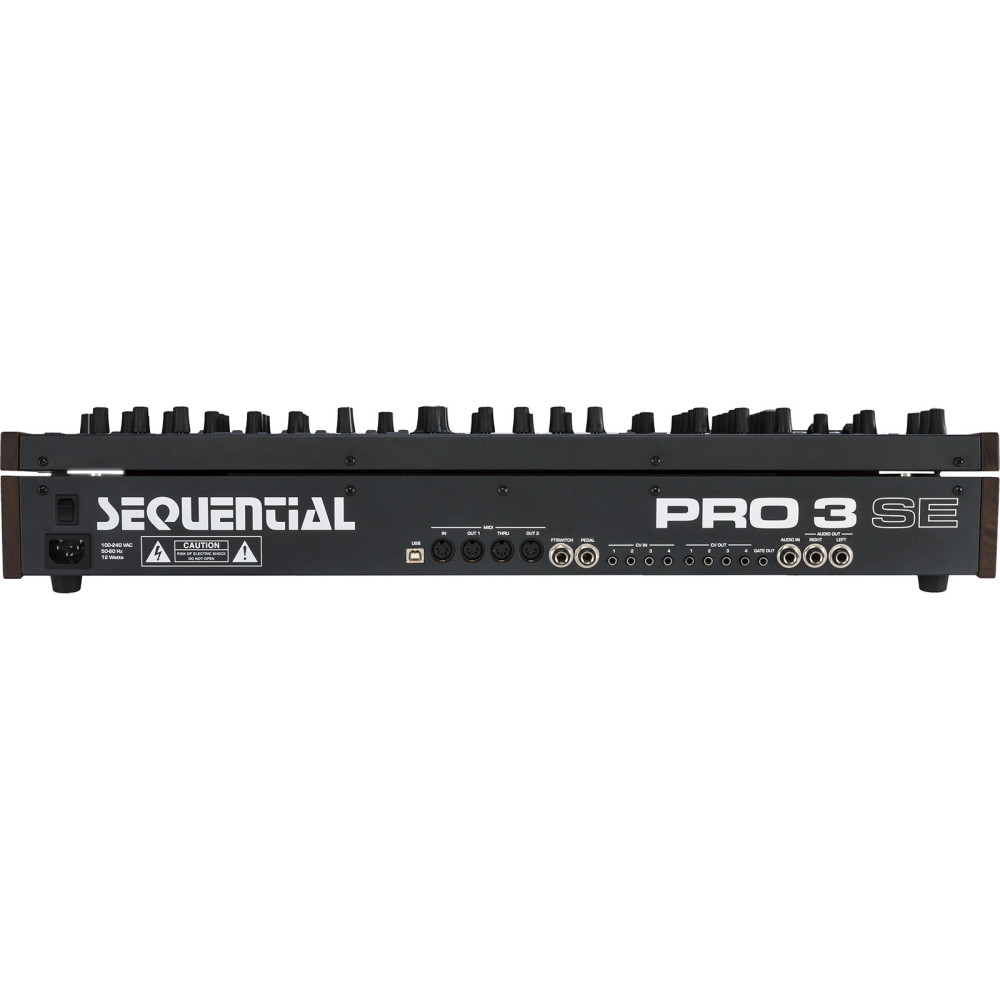

IN/OUT
1 MIDI In, 1 MIDI Out, and 1 MIDI Thru/Out 2 port
USB port for bidirectional MIDI communication
4 CV inputs (4 x 1/8″ jack) with -10v to +10v voltage range
4 CV outputs (4 x 1/8″ jack) with -10v to +10v voltage range
1 Gate Out  (1/8″ jack)
1 Sustain/footswitch input
1 Expression pedal input
1 External audio input  (1/4″ phone jack)
Main stereo output (2 x 1/4″ phone jack)
Headphone out (stereo 1/4″ phone jack)
POWER
1 universal IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100-240v, 50-60Hz, 30 watts maximum power consumption

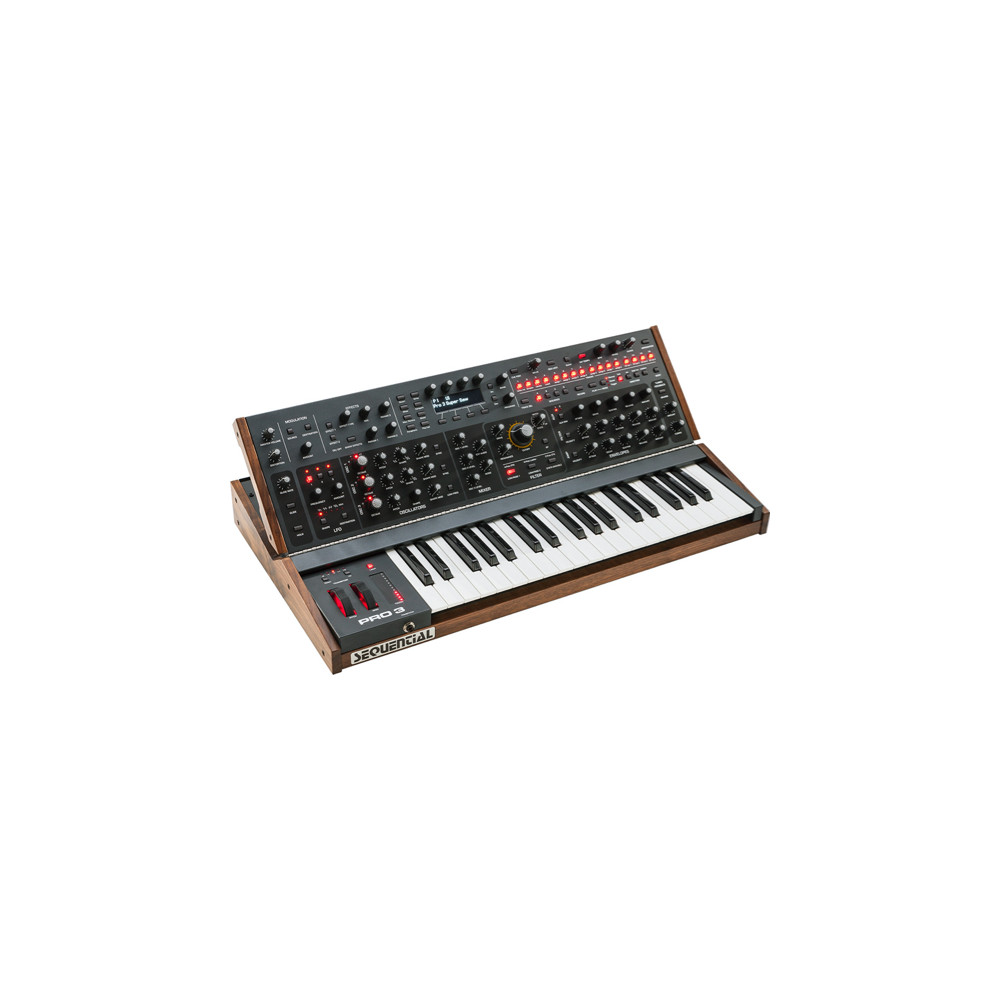

PHYSICAL SPECS
Premium, 3-octave, semi-weighted Fatar keyboard
27″ L x 14.6″ W x 5.07″ H (68.6 cm x 37 cm x 12.8 cm)
Weight: 27 lbs (12.25 kg)
Multi-angle tilt-up panel
Premium-grade walnut trim
