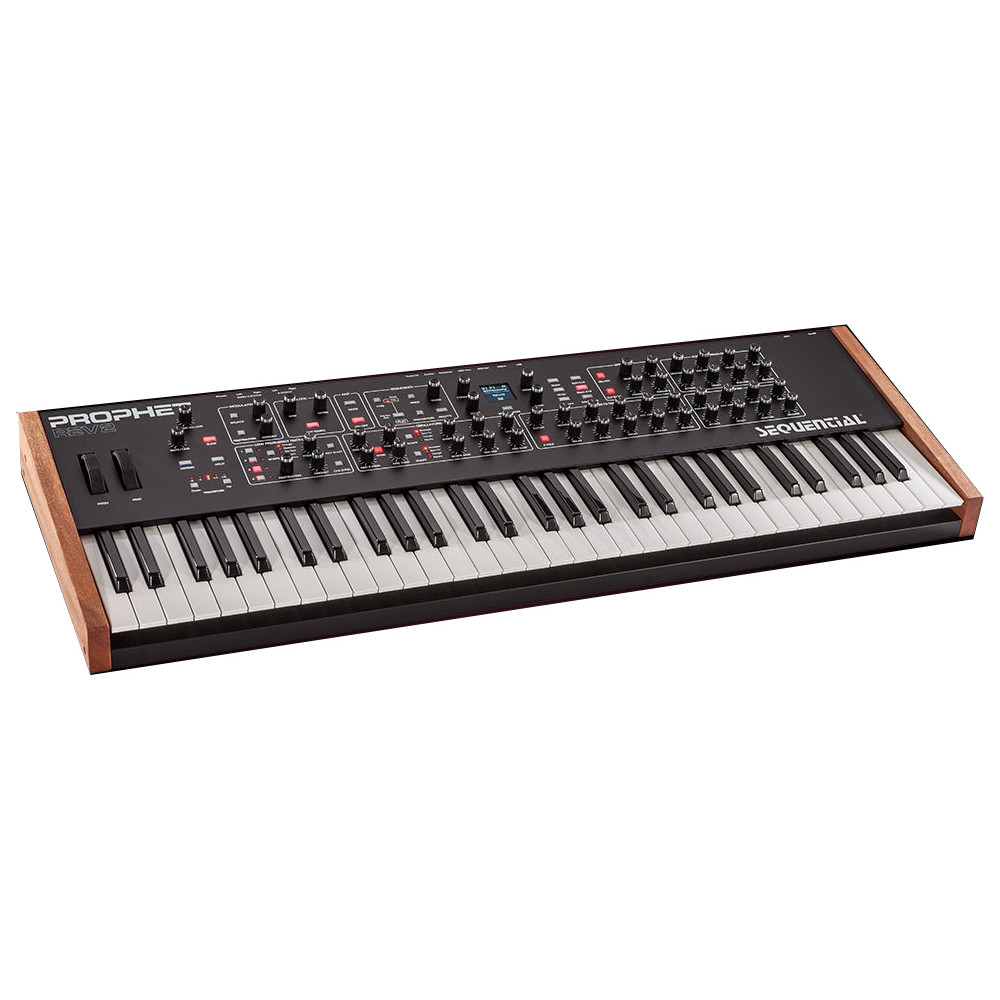

REV2 8 Sequential Voice Polyphonic Analog Synthesizer

Sequential Prophet REV2-8

Résumé
REV2 8 Sequential Voice Polyphonic Analog Synthesizer
2 099,00 €
TTC
Quantité

Rupture de stock

Prophet Rev2 Specifications

plus d'infos REV2-8

OSCILLATORS
2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
Glide (portamento): separate rates per oscillator
White noise generator
Analog VCAs
Hard sync
FILTERS
1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)
ENVELOPES
3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.
SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.
LFOS
4 LFO’s with key sync per LFO
MODULATION
8-slot modulation matrix
22 sources
53 destinations
5 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch
ARPEGGIATOR
Programmable arpeggiator with up, down, up+down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat
CONTROLS
5-octave keyboard with semi-weighted action, velocity, and aftertouch
52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.
Spring-loaded pitch wheel and assignable mod wheel
MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program
IN/OUT
MIDI In, Out, Thru
Main stereo audio output: 1/4″ unbalanced
Output B stereo audio output: 1/4″ unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch.
Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
Headphone output: 1/4″ stereo phone jack.
POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)
PHYSICAL SPECS
Oiled African mahogany wood end panels
Dimensions: 12.70″ (32.26 cm) W x 35.12″ (89.20 cm) L x 3.80″ (9.65 cm) H (2.30″ at front edge; the feet account for 0.25″ of the total height)
Weight: 20.5 lbs. (9.3 kg)
REV2-8

Fiche technique

Notes
61 notes

Références spécifiques

ean13
855346000708
